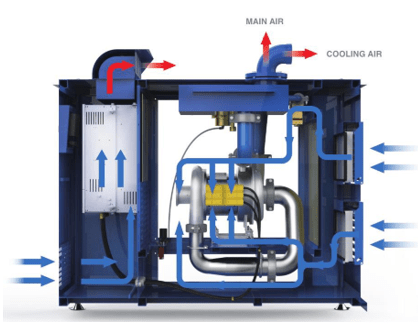

Turbo Compressor & Blower

Energy saving and high efficiency

• Air bearing direct connection technology, air compressor can save more than 20% of electricity.
• Air bearing direct connection technology, the blower can save 20%~57% of electricity compared with the Lu type.
• High efficiency impeller.
• Variable output settings, automatic adjustment of motor power consumption, to maintain high efficiency of equipment operation.
• No additional friction.

Ultra-low vibration, low noise

• Air suspension bearing ensures ultra-small vibration, less than 1 mm/sec.
• The noise is lower than 85 dB, and the fan does not need to be equipped with sound insulation device.
• There is no need to set up a special shock-absorbing foundation, and the installation is simple and flexible.

No lubricating oil

• The system does not require lubricating oil at all.
• Without all the disadvantages of an oil bearing system.

No heavy maintenance

• No need for gearbox and oil bearing, adopt new technology impeller, motor does not use coupling, directly connected.
• Smart control system.
• Only need to replace the air filter regularly.

Convenient operation control

• The fan speed, pressure, temperature, flow rate, etc. can be intelligently set and operated at constant pressure on the PLC.
• Multiple sensors check to prevent overload operation, and realize unmanned operation through anti-surge control.
• The fan adjusts the flow rate by adjusting the number of revolutions of the impeller.

Small equipment installation space

• Only 30~50% of the size of the same industry model.
• The equipment is light in weight, small in size, and easy to install, which can save a lot of user space and auxiliary electrical control system and accessories investment.

Spec

• Achieve the agreement with the customer to regulate the air volume and pressure. The size of the equipment depends on the customer’s demand and consumption.
